Aerator

The PERLATOR® Coin Slot Aerator can be used with cast faucets and needs no brass and no tools. This threaded aerator has an integrated coin slot for easy assembly or disassembly and can be removed with a coin. NO KEY – all you need is a coin to assemble or disassemble the aerator.

NO BRASS – The brass housing becomes redundant, reducing material costs and enabling you to save on special finishes.

100% COMPATIBLE with existing M24x1 aerators and fully compliant with EN246 bore specifications.

FLATNESS is achieved by a revolutionarily small aerator mixing chamber – NEOPERL® technology compressed into very little space.

DRIP RAIL functionality is fully integrated and prevents drops from running down the faucet.

PERFECT STREAM QUALITY – the HONEYCOMB® structure provides perfect stream quality.

Aerators_cache1CACHÉ® hidden aerators by NEOPERL offer ease and flexibility to the design: The aerator is screwed directly into the faucet eliminating the need for a housing – thus it is made invisible.

Laminar_streamThis means freedom of design, protection from vandalism as well as cost-effective production for faucets of all sizes and shapes.

NEOPERL now offers CACHÉ® Coin Slot aerators for tubular spouts. Thanks to an integrated coin slot, this threaded aerator can be assembled and removed using simply a coin. NO KEY – all you need is a coin to assemble or disassemble the aerator. FULLY COMPATIBLE – no change to existing bore specifications: you can replace all CACHÉ® aerators with the Coin Slot version.

DRIP RAIL functionality is fully integrated and prevents drops from running down the faucet. PERFECT STREAM QUALITY – the HONEYCOMB® structure provides perfect stream quality.

CASCADE® SLC Aerator

Smart Lime Cleaning (SLC) for a maximum lifespan of your faucet aerator:

• Maximum lime resistanceCascade SCL Sizes_2_200x178
• No need to disassemble the aerator for cleaning
• Perfect stream quality even under difficult flow conditions
• Very low noise level
• Damage proof: unlike conventional wire mesh screens, the CASCADE® structure can not be crushed

• Integrated anti-clogging dome screen filters sediments and particles available with laminar stream as well:
• CASCADE® SLC laminar (TJ Size)

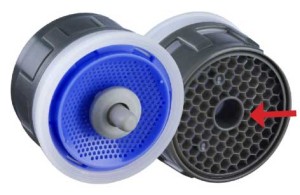

CASCADE® Aerator

• Superior lime protectionaerators_cascade1
• Extended life
• Perfect stream quality even under difficult flow conditions
• Very low noise level
• Damage proof: unlike conventional wire mesh screens, the CASCADE® structure cannot be crushed
• Integrated anti-clogging dome screen filters sediments and particles
• NEW: flow rates PCA® 0.35 and 0.5 gpm max. now available

PERLATOR® HONEYCOMB Aerator

Improved lime protection: integrated HONEYCOMB structure replaces conventional wire mesh screens prone to lime build-up.aerators_perlatorhc1

• Extended life
• Perfect stream quality even under difficult flow conditions
• Very low noise level
• Damage proof: unlike conventional wire mesh screens, the HONEYCOMB structure can not be crushed
• Integrated anti-clogging dome screen filters sediments and particles

PCA® Spray / PCA® Spray SLC

For good water dispersion at low flow rates.

• Recommended for application in series lavoratory faucets (public bathrooms exposed to walk-in traffic)
• Pressure compensating for near-constant flow from 0.8 to 6 bar
• Supplies all outlets evenly with water
• Provides a non-splashing, non-aerated spray
• Integrated anti-clogging dome screen filters sediments and particlesspray_stream
• virtually unbreakable single piece insert ensures a longer useable life
• SLC feature: soft elastomer layer; lime deposits can easily be rubbed off

SLIM AIR

This product’s main characteristic is the extemely low height combined with an excellent aerated stream quality. Another innovative feature is the integration of the water saving PCA® technology which allows a compliance with different international water-saving requirements. Hence, the use of a separate flow regulator becomes redundant.SlimAir_Größen

A major advantage of the SLIM Air is its 100 % compatibility with existing faucet threads of size male M24x1. The male M24x1 aerator in your faucet can easily be exchanged with the SLIM Air. This way you get around buying expensive brass housings and have more freedom for faucet design.

You have the option to select from useful features:

• Adjustable tilting plate (SSR)
• Smart Lime Cleaning (SLC)
• A combination of both

• Rectangular aerators have changed the shape of the water streaming. Faucet designers experience new possibilities and interesting style options for faucet and water stream.
• A flow regulated 1.5 gpm PCA® version (size: 32×8 mm), various restricted flow classes and two different stream patterns (laminar and aerated) are available.

• Esides the established NEOPERL sealing technology a rectangular sealing (RS) facilitates mounting in sharp edged rectangular tubes.
• Choose from four sizes: small, medium, large, x-large.
• Please refer to our product data base for detailed information on sizes, flow classes and patterns.

• The angle of the water stream can be adjusted directly at the aerator – simply by moving the adjustable tilting plate. Attainable swivel angle depending on the aerator model: ± 6° up to ± 10°.SSR_mit_Sizes
• Sometimes when a faucet is installed with a wash basin, the faucet stream direction is less than optimum (water splashing, difficulty rinsing hand). NEOPERL designed the SSR to allow

Adjustments in aerators_ssrAthe water stream direction on site without having to replace expensive faucet or basin. In the basic position there is no visual difference to the standard version. SSR aerators are 100% compatible with standard size housings, which means existing aerator inserts can easily be replaced.

• Flushes out sediments and particles up to 0.7 mm
• “heavy duty” model (flow rate V): works even for particles up to 2.0 mm

• No need to disassemble the aerator to remove debris from the dome screen
• Perfect stream quality even in regions with difficult water conditions
• Available in Standard (STD) size in various lines and flow classes

Aeration at Low Pressure conditions

NEOPERL offers faucet aerators suitable for areas with low supply pressure or for gravity-fed systems. They ensure a fully aerated, comfortable stream in low pressure conditions (0.1-0.8 bar).CASCADE_Q_V_Kombi2

Flow Rate V

V class models produce an excellent aerated stream with only a minimal reduction in flow rate. V models are available in various product lines and sizes.

Recommended max. pressure at aerator: 0.8 bar

Minimum flow requirement for aeration: 3.5 l/min at 0.1 bar

(*) Flow measured at 0.2 bar: approx. 5.2 l/min

(*) Air/Water Ratio: approx. 1.3 : 1

* Values apply for STD sized aerators

Flow Rate Q

This aerator achieves a fully aerated stream at low pressure conditions even with low flow at the spout end which means only half of the water consumption compared to the V model.

Recommended max. pressure at aerator: 0.6 bar

Minimum flow requirement for aeration: 1.8 l/min at 0.1 bar

(*) Flow measured at 0.2 bar: approx. 2.5 l/min

(*) Air/Water Ratio: approx. 1.5 : 1

* values apply for STD sized aerators
